Large Fecal Pump - Explosion-Proof High-Flow Gear Fecal Pump (80YHCB-60, 7.5kW, 40 m³/h)

Large Fecal Pump - Explosion-Proof High-Flow Gear Fecal Pump (80YHCB-60, 7.5kW, 40 m³/h)

Product Overview

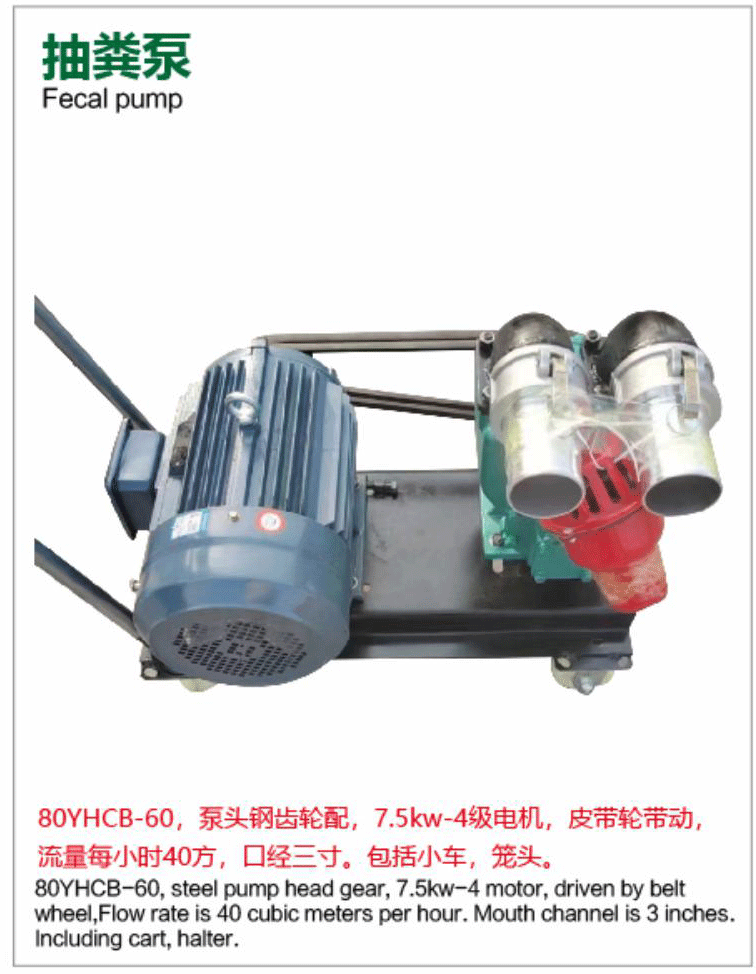

The Huying Pump Industry Large Fecal Pump (80YHCB-60 model) is a heavy-duty industrial-grade explosion-proof gear pump specifically engineered for pumping high-viscosity, solids-laden fecal matter, sewage, biogas slurry, and sludge. Equipped with a 7.5kW 4-pole explosion-proof motor, steel gear pump head, belt-drive system, and 3-inch large ports, it delivers a massive flow rate of 40 cubic meters per hour (~667 liters/min). Mounted on a mobile cart with halter, it is ideal for large-scale manure handling in livestock farms, biogas plants, wastewater treatment, and agricultural fertilization. As a flagship heavy-duty model in Huying's professional explosion-proof pump series, this fecal pump offers high flow, strong head, certified safety, and robust durability for high-risk, high-load, continuous operation in demanding environments.

Primary Uses

• Large-Scale Livestock Farm Manure Removal: Rapid pumping of pig, cattle, and poultry manure pits, septic tanks, and biogas slurry pools to reduce labor and improve efficiency.
• Biogas & Fermentation Projects: Extraction from anaerobic digesters and fermentation tanks for biogas feedstock recycling or liquid fertilizer field application.
• Wastewater & Sludge Transfer: Handling municipal septic tanks, industrial sludge, or wastewater with high solids content.
• Agricultural Organic Fertilizer Application: Direct pumping of manure/biogas slurry to farmland for drip or spray irrigation and resource utilization.
• Emergency & Large-Scale Cleaning: Municipal sewer and septic emergency pumping, or disaster-site fecal cleanup with mobile cart for flexible deployment.

Materials and Construction

• Pump Body Material: High-strength cast iron casing + reinforced components, impact-resistant, heat-resistant, and corrosion-proof for heavy-duty industrial and outdoor use.
• Gears: High-strength steel gears (precision machined), high hardness, excellent wear resistance, and anti-clogging performance for solids-laden viscous media.
• Explosion-Proof Motor: 7.5kW 4-pole Ex d IIB T4 (or higher) rated motor, full copper windings + cooling fins, prevents spark leakage in flammable biogas/manure environments.
• Drive & Accessories: Belt-drive pulley system (torque multiplication and shock absorption), 3-inch brass/cast iron ports, heavy-duty mobile cart with wheels, halter (anti-clog inlet), quick-connect flanges/hoses; robust build weighing approx. 150-200kg, with lifting rings/handles for hoisting.

Core Functions and Features

• Ultra-High Flow: 40 m³/h (~667 L/min) with 3-inch large ports for rapid pumping of large volumes of fecal matter and slurry.
• Explosion-Proof Certification: Motor rated Ex d IIB T4 (or higher), safe for biogas pits and manure environments with potential flammable gases per national standards.
• Steel Gear Durability: High-strength steel gears resist wear and clogging from feces, fibers, sand, and solids—smooth, long-life operation.
• Belt-Drive Protection: Belt pulley reduces speed and increases torque, cushions shocks, and protects motor/gears for extended service life.
• Self-Priming & Head: Suction lift approx. 5-7m, head up to 20-30m—efficiently draws from deep pits or low-level sources.
• Mobility & Convenience: Mounted on wheeled cart for easy single-person movement between pits; simple structure for easy maintenance.

Specifications

• Voltage: 380V (three-phase, explosion-proof motor)
• Power: 7.5kW (4-pole motor)
• Flow Rate: 40 m³/h (~667 L/min)
• Port Size: 3 inches (inlet & outlet)
• Applicable Media: Fecal matter, biogas slurry, sewage, sludge, etc. (high-viscosity solids-laden)
• Explosion-Proof Rating: Ex d IIB T4 (or higher)
• Quantity: Ample stock available (bulk orders supported)
• Accessories: Mobile cart, halter, belt-drive system, brass ports

The Large Fecal Pump (80YHCB-60) is a heavy-duty explosion-proof best-seller from Huying Pump Industry, with 7.5kW power + steel gears + 3-inch high flow + Ex-proof certification—powerful, safe, and clog-resistant—trusted by large livestock farms, biogas projects, wastewater facilities, and agricultural fertilizer operations. Search keywords: fecal pump, 80YHCB-60 explosion-proof manure pump, large high-flow fecal pump, 7.5kW slurry pump.
